Fully 3D printable four bearings Spool Holder for 3D printer enclosure. This spool holder is optimized for easy spool change (no screwing/unscrewing needed).
![3D printed spool holder with four 3D printed planetary gear bearings Fully 3D printed spool holder](http://raspberrypi.local:8181/wp-content/uploads/11-Fully-3D-printable-Spool-Holder/title-1024x576.png)
First things first
Download the Spool Holder from Thingiverse: https://www.thingiverse.com/thing:4458183
How to print:
All parts can be printed without support, brim, or raft.
Print with 0.4mm nozzle.
- 1x Base – print with 0.3 layer height and 10% to 20% infill
- 2x Shafts – print with 0.3 layer height and 10% to 20% infill
- 4x Guide Wheels – print with 0.2 or 0.3 layer height and 10% to 20% infill
- 4x Gear Bearings – print with 0.2 layer height and 0% infill
I created two versions of the bearings. One version with 0.3mm clearance and one with 0.5mm clearance.
Use the 0.5mm version only if your printer can’t handle the 0.3mm version.
Elements:
![3D printed spool elements](http://raspberrypi.local:8181/wp-content/uploads/11-Fully-3D-printable-Spool-Holder/spool_holder_parts.jpg)
Assembled:
![3D printed spool holder -assembled](http://raspberrypi.local:8181/wp-content/uploads/11-Fully-3D-printable-Spool-Holder/spool_holder_assembled.jpg)

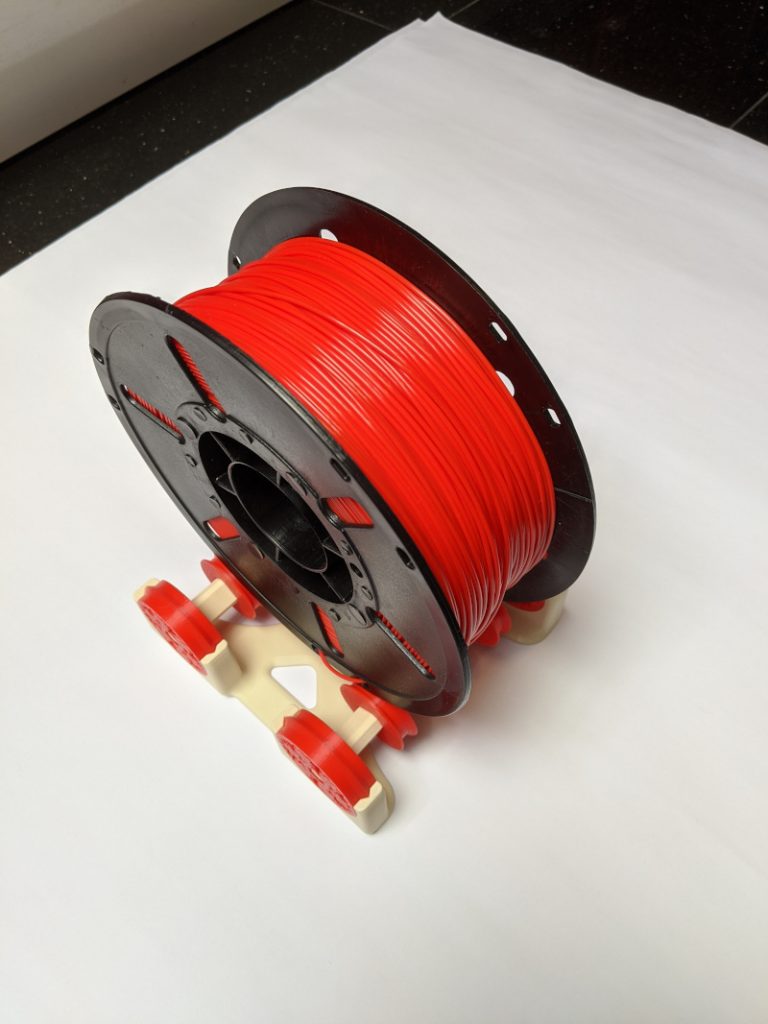

Abd with a spool on it:
![3D printed spool holder with a spool on it](http://raspberrypi.local:8181/wp-content/uploads/11-Fully-3D-printable-Spool-Holder/spool_holder_with_a_spool-768x1024.jpg)
How to assemble
![](http://www.thinker-talk.com/wp-content/uploads/ma-gdpr-youtube-thumbnails/PM5cqZUOgE4/PM5cqZUOgE4_mqdefault.jpg)
The spool Holder in Action
![](http://www.thinker-talk.com/wp-content/uploads/ma-gdpr-youtube-thumbnails/1bygmmsJ9sE/1bygmmsJ9sE_mqdefault.jpg)
Why I created this Spool Holder?
This is my old model fully 3D printable spool holder:
![](http://www.thinker-talk.com/wp-content/uploads/ma-gdpr-youtube-thumbnails/KRoDP5ZiinQ/KRoDP5ZiinQ_mqdefault.jpg)
Find on Thingiverse: https://www.thingiverse.com/thing:3893905
This spool holder works really great but has one problem. Spool changing requires multiple actions:
- unlock the bearings
- unscrew the nuts
- get the spool out
- put the new spool in
- screw the nut
- lock the bearings again
To simplify this process I decided to make a new spool where you can put the spool on it with one simple move.
